Imprivata Documentation | Imprivata Enterprise Access Management (Confirm ID) 24.3 | Topic updated: February 27, 2025

Extension Objects

Extension objects allow Imprivata Enterprise Access Management to extend beyond its base capabilities to support external software tools. You assign Extension Objects to computers using computer policies, which are detailed in Creating and Managing Computer Policies.

NOTE: Extension objects are unrelated to the Enterprise Access Management extension that is installed in Google Chrome to enable single sign-on. See Support for Applications that Run in Google Chrome.

Enterprise Access Management supports three extension objects, available from the Extensions tab of the Computer policy page in the Imprivata Admin Console:

Using the Carefx Extension Object — Synchronize user identity with the Carefx Application Context Manager.
Using the Managed Exit for MEDITECH Extension Object — Manage a graceful exit of MEDITECH applications run through Forward Advantage’s MEDITECH MEM API.
NOTE: This extension object only applies if you are providing Single Sign-On (SSO) to Meditech applications through Enterprise Access Management.
Using the Procedure Code Extension Object — Manage the execution of procedure code triggered by pre-defined agent and application events.

Using the Procedure Code Extension Object

Procedure codes are command sequences or more complex JavaScript, PowerShell, or VBScript scripts triggered by pre-defined agent and application events.

When using PowerShell, consider the following:

Script Block Logging can expose sensitive information, such as hard-coded credentials. To prevent the unintended exposure of sensitive information, disable Script Block Logging. If you must enable Script Block Logging, Microsoft recommends enabling Protected Event Logging. For more information, see the Microsoft documentation.
The Get-Credential command is not supported.

When you create a procedure code, you use a chooser to select events that will trigger the code, and then write the code in an edit box beneath the events chooser. The Imprivata agent and application events and the Enterprise Access Management variables are provided in live glossary links.

You can define single events, use an OR function to define alternative events, and use a PAUSE/EXCEPT combination to define a canceling event.

NOTE:

Microsoft has announced the deprecation of VBScript. Microsoft has not announced a release date on which VBScript will be retired, instead stating that VBScript will be available as a feature on demand before being retired in a future Windows release. While Imprivata procedure code extension objects continue to support VBScript, it is recommenced that you create new event triggers using a supported scripting language, such as JavaScript or PowerShell, while planning for the retirement of VBScript.

Procedure Code Examples

A VBScript to map to a specific drive depending on who logs into a workstation: Each time a user logs into the workstation, the script executes to ensure the user has access to the correct network drive. In this example, the user login is the event, and the mapping is handled by a VBScript created by an Administrator.

A VBScript to unmap the drive when the user logs out or is disconnected: When any user logs out of the workstation, the desktop locks and the drive mapping is deleted. In this example, the desktop lock is the event, and the mapping and unmapping is handled by a VBScript created by an Administrator.

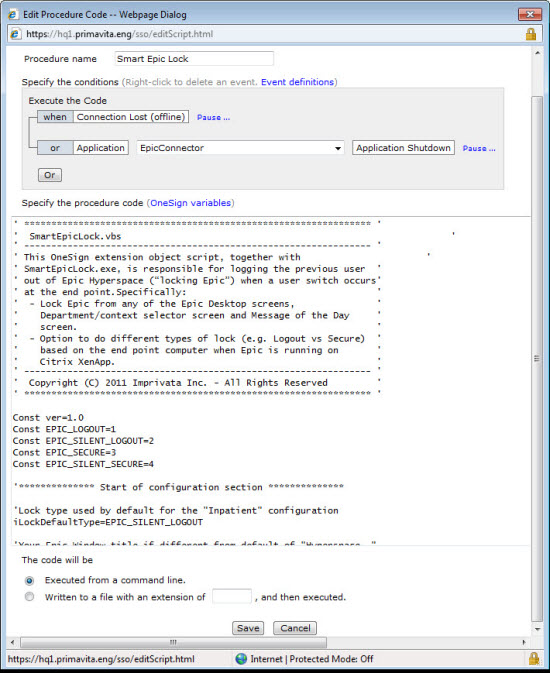

You create, edit, and delete procedure codes from the View/Edit link of the Procedure code section of the Extensions page from the gear icon.

Creating a Procedure Code

To create a new procedure code:

Click Add.
Specify the conditions under which the procedure code is to be executed . See Specifying the Conditions.
Enter the code. See Entering the Code.

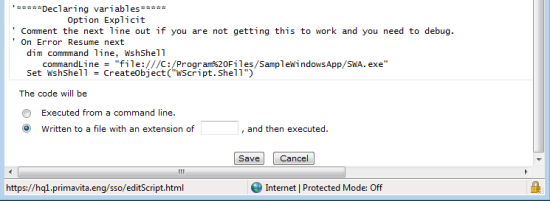

Select the Execution Method and Save

Editing a Procedure Code

To edit an existing procedure code, click on its name and make your changes just as if you were creating a new procedure code.

Deleting a Procedure Code

To delete one or more procedure codes:

Select the names of the codes to be deleted.
Click Delete.

Specifying the Conditions

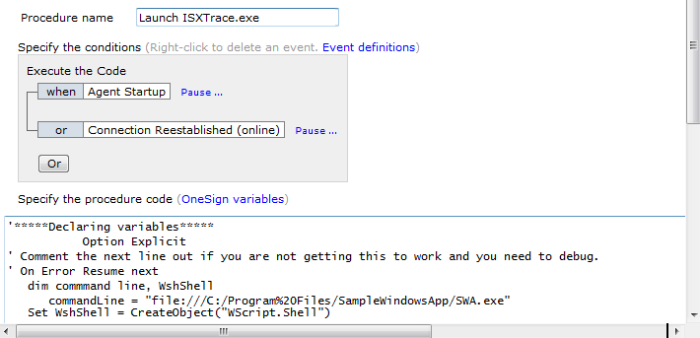

The first step when setting up a procedure code is to specify the conditions that trigger it. Conditions are built from events arrayed in a logic tree as shown in the following image:

Events that occur at the agent level, regardless of what applications may be running, are global events. Events that are triggered by an application starting or shutting down, or by a specific window within a specific application, are application events. Application events are supported in Enterprise Access Management with SSO only.

To specify conditions that will trigger a procedure code:

Select a global event to trigger the procedure code, or scroll to the bottom of the Global Events list and select Application Events to open a drop-down list that shows all profiled applications. When you select an application, a new drop-down list opens showing application events. Select an application event to trigger the procedure code. Application events are available only with the SSO option.
If the event should always trigger the procedure code, then enter the code.
If there are additional events that may trigger the same code, then click Or and select additional global and application events as needed.
To enter an exception that can cancel the procedure code, click Pause... and enter the pause duration in seconds, and then fill in the Unless conditions in the same way. Execution of the procedure code is delayed for that period (counting from the triggering event) while the agent watches for the canceling event to occur:

If the Pause time elapses without the canceling event taking place, then the procedure code is executed.
If the canceling event occurs, then the procedure code is not needed.

Using the Events Glossary

Procedure codes are triggered by events. Use the Events Glossary to be certain of the events that will trigger the procedure code. There are two types of events:

Global Events for Procedure Codes — The global events in the following table are triggered by Imprivata agent activities and apply without regard to any running applications. Global events are useful for Procedure Codes invoked by user or computer workstation actions.
Application Events for Procedure Codes (SSO Only) — The application events in the second table are triggered by Enterprise Access Management-recognizable events from specific applications. Application events are monitored only when you have Enterprise Access Management SSO installed.

Global Events for Procedure Codes

Global Event	Agent Type	Event Trigger
Agent Startup	All	Only when the agent process is started. This may happen because of the Autorun key in the registry, or because of a manual startup of the agent. Before this event is fired, the agent has no logged-in user.
Agent Shutdown	All	Right before termination of the agent process. This is fired when the user chooses to exit the agent or when the user chooses to log off. At the time when this event is fired, there may or may not be a logged-in user.
User Login	Kiosk agent	Immediately after a new user unlocks the workstation. The event is also fired just after any authentication where the new user is different from the previous user.
User Login	Imprivata single-user computer agent and Citrix agent Imprivata shared kiosk workstation agent	Immediately after a session is started for the user. This event fires sometime after the AgentStartup event, when the agent picks up the session. At the time this event is fired, a user is logged in. The user may be online or offline depending on the state of the communications with the Imprivata server. This event is also fired just after any authentication where the new user is different from the previous user.
User Logout	Imprivata single-user computer agent and Imprivata shared kiosk workstation agent	Inactivity or timer-based challenges, hotkey press, tap to lock, and a logoff initiated from either the ISXAgent menu or ISXMenu.exe.
User Logout	Imprivata Citrix or Terminal server agent	N/A
Non-OneSign User Login	All	When a user logs into Windows without Enterprise Access Management authentication (if allowed in Computer Policy).
Login Dialog Cancelled	Citrix or Terminal server agent, Imprivata shared kiosk workstation agent	When the login dialog for the agent is canceled. NOTE: The Imprivata single-user computer agent does not send this event.
Desktop Locked	Imprivata single-user computer agent and Imprivata shared kiosk workstation agent	At additional finger enrollment, random challenge, offline/online transition with an expired session, offline/online transition with non-offline support policy set, inactivity challenge, hotkey press, and Lock event. At the time this event is fired, there may still be a logged-in user.
Desktop Locked	Citrix or Terminal server agent	N/A (the desktop does not get locked for a Citrix agent under such conditions)
Desktop Unlocked	All	After a returning user unlocks a locked desktop.
Remote Session Connected	All	When a user logs in to a remote virtual desktop session.
Remote Session Disconnected	All	When a remote virtual desktop session is disconnected.
Lock Warning (Inactivity) Indicated	All	Occurs when a lock warning (inactivity) indicator is displayed.
Connection Lost	All	During all online/offline transitions. When this event is fired, there should always be a logged-in user.
Connection Reestablished	All	During all offline/online transitions. When this event is fired, there should always be a logged-in user.

Application Events for Procedure Codes (SSO Only)

Application Event	Application Type	Event Trigger
Application Startup	HLLAPI	When a new application is recognized within a HLLAPI session. When this event is fired, a logged-in SSO user exists and application variables may have captured values.
	Windows apps, Java	When a new application is recognized. When this event is fired, a logged-in SSO user exists and application variables may have captured values.
	TEs, WEB	When a terminal emulator container is started.
Application Shutdown	Windows apps, Java	When the main window of an application is about to be closed.
Application Shutdown	TEs, Web	When a terminal emulator container is closed.
Screen Appeared	Windows apps, Java	When a profiled screen is recognized in an active window.
Screen Appeared	Web	Upon navigation to a monitored URL.
Capturing Credentials	Windows apps, Java, TEs, Web	When the agent changes to Credentials Capture mode. This change of mode corresponds to display of the notification bubble with the "Capturing Credentials" text.
Credentials Captured	All	When the agent exits Credentials Capture mode. This change of mode corresponds to the display of the notification bubble with the "Credentials Captured" text. Note that this event may not be fired following a Capturing Credentials event if success screen is not seen.
Credentials Proxied	All	When credentials are proxied to a screen.
Password Change Begin	All	When a password change screen is found and credentials are about to be captured on the screen. This change of mode corresponds to the display of the “Capturing Credentials” notification bubble.
Password Change Complete	All	When credentials are successfully captured on a password change screen.

Specifying a PowerShell Execution Policy

If you are deploying a PowerShell script that requires an execution policy, configure the following registry key on your Windows endpoints. The Imprivata agent enforces the execution policy that the registry key specifies, regardless of the default execution policy scope on the local endpoint. Consider the following:

Windows 11 23H2 and earlier — The default value for all scopes is Undefined. If the default values are unchanged, and the registry key is not configured, the PowerShell script does not run.
Window 11 24H2 — The default value for LocalMachine is RemoteSigned. All other scopes default to Undefined. If the default values are unchanged, and the registry key is not configured, the PowerShell script runs with the RemoteSigned execution policy.
