About Smart Hubs

When used with certain smart enterprise USB hubs, Mobile Access Management  can provide enhanced detail such as port number and charging rate. Some models also allow for LED control, to show successful or failed deployments, for example.

LED Feedback

Mobile Access Management uses available LEDs to display pairing, charging, and Workflow status information. On some models, the blue LED shows as yellow.

Datamation Units with Multicolor LEDs

Imprivata-branded Bretford PowerSync Pro v2

	Green, solid	Idle / Successful	Fully Charged
	Green, blinking	Idle / Successful	Charging
	Blue, solid	Deployment in progress	Can be suppressed via a Check Out Workflow action or from the Launchpad.
	Blue, blinking	Waiting for pairing or waiting for recovery mode
	Red, solid	Deployment failed
	Green & Blue	Not paired or pairing error
	White, blinking quickly	Check out complete, remove device now

Legacy Bretford with Amber/Green LEDs (Mac only)

	Green, solid	Idle	Fully Charged
	Amber, solid	Idle	Charging
	Green, blinking	Busy	Fully Charged
	Amber, blinking	Busy	Charging

Port Number

When available, Mobile Access Management displays the port number for each device plugged into a hub.

If a Launchpad detects multiple smart hubs, then it will assign each a letter. Ports will be displayed as "A-1", "A-2", "B-1", etc. A hub will be assigned the same identifier consistently, so you may physically label the hub if you desire.

Charging Rate

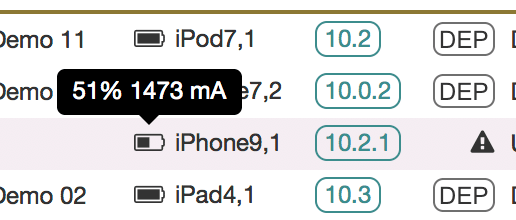

When available, charging rate in Amps is displayed next to the battery power level. Mouse over the battery indicator to display.

This data is refreshed every 10 seconds or so.

Supported Smart Hubs

For information on supported Smart Hubs, see the system requirements.
