Configuring Support for Omnissa Horizon View RDS Hosted Applications

To support Omnissa Horizon View RDS hosted applications (RDS hosted applications), Imprivata must connect to a Omnissa Horizon Connection Manager. You need the URL of this broker when configuring your VMware View environment, and when configuring the Imprivata connection to the VMware App applications. See Configuring Support for Omnissa Horizon View RDS Hosted Applications

When configuring Imprivata's connection to the Omnissa Horizon Connection Manager, you enter the name of each VMware application to be published to endpoint computers. These applications include:

• A Remote Desktop Services (RDS) virtual desktop.

  NOTE: Although you can publish an RDS virtual desktop, it is considered an application.

• The applications that are deployed to and launched from an RDS desktop.

You must spell the application names exactly the same, including spacing and capitalization, as they appear in the VMware View Horizon Administrator console. See Configuring Support for Omnissa Horizon View RDS Hosted Applications

To support RDS hosted applications, copy the domain certificate from the Omnissa Horizon Connection Manager and add it to all endpoint computers.

Session persistence (roaming) is managed by your virtual environment, not Imprivata Virtual Desktop Access. If your virtual environment is configured correctly for session persistence, Imprivata Virtual Desktop Access seamlessly roams user sessions, on authentication, to the endpoint computers in your environment.

Imprivata Virtual Desktop Access reconnects to any existing application sessions, including those that:

• You have configured the user policy to automatically launch.

• Users have launched manually.

Before you configure Imprivata with RDS hosted applications:

• Review Imprivata Enterprise Access Management for SSO Supported Components or Imprivata Enterprise Access Management for MFA Supported Components to confirm your VMware View agent and client versions are supported by Imprivata.

• View the software listed in the Windows Control Panel > Add Remove Programs for all VMware virtual machines (VMs) and endpoint computers. Verify that the:

  • VMware View agent is installed on all VMs.

  • Omnissa Horizon View Client (View Client) is installed on all endpoint computers.

After a workstation lock/unlock, users may be inadvertently disconnected from RDS hosted applications that are automatically launched. Configuring the View Client to automatically reconnect to open applications prevents users from having to manually launch the disconnected applications.

Complete the following on all endpoint computers:

1. From the endpoint computer, open the View Client.

2. From the gear icon menu, click Applications > Reconnect automatically to open applications.

3. Click OK.

To install the Imprivata agent to all VMs:

1. Install the Imprivata agent on one VM.

2. Clone the VM for all of the installations you require.

Install the Imprivata Citrix or Terminal Server agent on each RDS session host. For complete installation details, see Deploying the Imprivata Agent.

The Imprivata agent must be installed on each endpoint computer on which VMware View Virtual Desktop Access will be used.

The installation can be pushed to groups of computers or installed on one computer at a time, depending on your organization's preferences. See Deploying the Imprivata Agent for instructions on installing agents. Choose the method that suits your environment.

To support RDS hosted applications, Imprivata agents must communicate with one or more Omnissa Horizon Connection Managers.

1. In the Imprivata Admin Console, go to the Computers menu > Virtual desktops page > VMware Horizon – Apps section.

2. Enter the URL of each Omnissa Horizon Connection Manager. To add more than one server, click Add another server.

3. From Authenticate using, select the type of credentials that apply to the applications on the specified server.

4. Enter the application names. You can enter:

   • One or more RDS virtual desktops.

   • One or more applications that are deployed to and launched from an RDS desktop.

   NOTE: You must spell the application names exactly the same, including spacing and capitalization, as they appear in the VMWare View Horizon Administrator console.

Select the User Logon Format for VMware View Authentication

By default, Enterprise Access Management uses the down-level logon name format (such as [DomainName]\UserName) for authentication when launching VMWare View applications.

To disable the use of the down-level logon name format and to enable the user principal name (UPN) format (such as UserName@example.com), create the DoNotUseUPN registry key with a Data Type of DWORD and a value of 0 in the following location:

• HKEY_LOCAL_MACHINE\SOFTWARE\SSOProvider\VDI\View

This is only applies to Imprivata environments configured and licensed for Authentication Management.

Create, configure, and assign a computer policy that automates endpoint computer access to Omnissa Horizon View.

Endpoint computers and virtual applications are assigned the Default Computer Policy unless:

• A different computer policy is manually assigned.

• A different computer policy is automatically assigned by computer policy assignment rules.

Review the Default Computer Policy settings to confirm that they are appropriate for your virtual desktop environment.

Step 7a: Create a Computer Policy for Endpoint Computers

1. In the Imprivata Admin Console go to the Computers menu > Computer policies page.

   You can select an existing computer policy from the list, or make a copy of the Default Computer Policy as a starting point. If you want to edit an existing computer policy, click the existing computer policy name, and skip to step 7b.

2. To copy the Default Computer Policy, select Default Computer Policy , then click Copy.

3. Click Default Computer Policy (2).

4. Rename the computer policy in the Name field.

Step 7b: Configure the Computer Policy to Endpoint Computers

1. Click the Virtual Desktops tab and go to the VMware Horizon – Apps section.

2. Select Automate access to VMware Horizon.

3. You can control the behavior when an endpoint computer is locked:

   • Select Keep the VMware Horizon client and user session active to preserve the user session. When a user logs back into the endpoint computer or roams to another endpoint computer that is enabled with Omnissa Horizon, their applications are preserved just as they were when the endpoint computer is locked.

   • Select Shutdown the VMware Horizon client and disconnect the user session to help optimize resource consumption and minimize the total number of active sessions in use in the enterprise. When a user logs back into the endpoint computer (or another endpoint computer with VMware View enabled), their applications relaunch.

4. Select the servers that the endpoint computers should use.

   NOTE: To update the list of available servers, click Add or modify VMware servers.

5. Click Save.

Step 7c: Assign the Computer Policy to Endpoint Computers

Assign the computer policy to the endpoint computers.

Manually Assigning the Computer Policy

To assign the computer policy:

1. In the Imprivata Admin Console, go to the Computers menu > Computers page.

2. Select the computers to which to assign the computer policy. You can use Search for Computers to enter search criteria.

3. Click Apply Policy.

4. Select Choose a policy for selected computers, choose the policy from the list, and then click Apply Policy.

Automatically Assigning the Computer Policy

Computer policy assignment rules let you assign a policy to existing endpoint computers and make sure that the policy is automatically assigned to endpoint computers that are added later.

To use a rule to assign the computer policy:

1. In the Imprivata Admin Console, go to the Computers menu > Computer policy assignment page.

2. Click Add new rule.

3. Name the rule and select the assignment criteria.

4. Select the policy you created and click Save.

Create and apply a user policy that automates user access to RDS hosted applications.

Step 8a: Create a User Policy

1. In the Imprivata Admin Console, go to the Users menu > User policies page.

2. You can select an existing user policy from the list, or make a copy of the Default User Policy as a starting point. If you want to edit an existing user policy, click the existing user policy name, and skip to step 6.

3. To copy the Default User Policy, select Default User Policy, and then click Copy.

4. Click Default User Policy (2).

5. Rename the user policy.

6. Click Virtual Desktops.

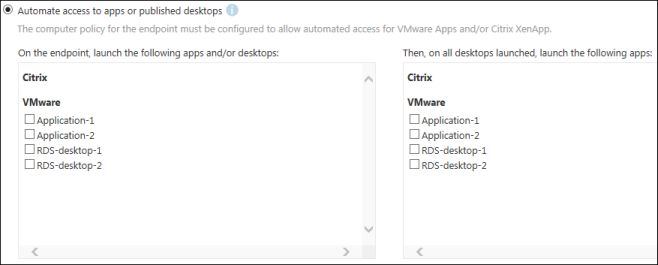

7. Select Enable virtual desktop automation > Automate access to apps or published desktop. The list of applications configured in Configuring Support for Omnissa Horizon View RDS Hosted Applications are listed in two panes.



8. Configure one of the following:

   • If you only want to automatically launch applications, select the applications from the left pane. Do not select applications from the right pane.

   • If you only want to automatically launch an RDS desktop, select the RDS desktop from the left pane. Do not select applications from the right pane.

   • If you want to automatically launch an RDS desktop and individual applications, which are not on top of the desktop, select the RDS desktop from the left pane and the applications from the left pane.

   • If you want to automatically launch applications on top of an RDS desktop, select the RDS desktop from the left pane, and then select the applications from the right pane.

9. Click Save.

Step 8b: Apply a User Policy

1. In the Imprivata Admin Console, go to the users page Users menu > Users page .

2. Select the users to which you want to apply the user policy.

   You can view additional pages of users without losing your selections. The users that you select are saved and a counter on the top of the page lists the number of selected users.

   BEST PRACTICE: To select multiple users more efficiently, use the Search for Users tool at the top of the Users page. The tool offers search parameters for refining your results.

3. Click Apply Policy.

4. Choose a policy, and then click OK.

By default, the Omnissa Horizon View RDS virtual desktop does not enable devices plugged into a USB port on a Windows endpoint computer. To enable the support of a USB port, create one of the following registry keys with a Data Type of DWORD and a value of 1:

• connectUSBOnInsert — Connects a USB device to the foreground desktop when the device is plugged in.

• connectUSBOnStartup — Connects all USB devices to a desktop when it is launched.

Add the key in the following location: \HKEY_LOCAL_MACHINE\SOFTWARE\SSOProvider\VDI\View

To enable detection of proximity card events by the Imprivata agent on the Omnissa Horizon View RDS virtual desktop, create the RedirectionSupported registry key with a Data Type of DWORD and a value of 1:

• \HKLM\SOFTWARE\SSOProvider\DeviceManager

To prevent simultaneous RF IDeas reader access by two Imprivata processes, create the RemoteOnly registry key with a Data Type of DWORD and a value of 1:

• \HKLM\SOFTWARE\SSOProvider\DeviceManager

If you have enabled the UPN format for authentication, Enterprise Access Management supports additional registry-based configuration for launching VMware View to better support UPN format credentials. These registry values allow more fine-grained control of the launch process:

• UseInteractive — This key has no effect on RDS hosted applications.

• DisableDomainName — if set to 1, VMware View will not issue the –domainName option on the command line. If set to 0, it will appear on the command line.

• useDomainName — a string value that allows the customer to specify an alternate domain name. The Imprivata-derived domain name is used by default.

Set the registry key with a Data Type of DWORD:

• \HKEY_LOCAL_MACHINE\SOFTWARE\SSOProvider\VDI\View

You can display your corporate logo on the Imprivata login and enrollment screens for Imprivata single-user and shared-kiosk workstations. See Branding the Login and Self-Service Experience.
