iOS Express Checkout

Applies to iOS devices only.

Express Checkout for iOS is a pre-configured workflow model designed specifically for simplicity and speed. The feature is designed to check out a device in under two seconds, so your clinicians can get their devices fast and focus on taking care of patients.

The iOS Express Checkout workflow model is pre-configured to:

  • Suppress the blue LED on Check Out.

  • Automatically check in a device, if the check out fails.

In addition, the iOS Express Checkout workflow model supports the following optional Workflow actions:

  • Adding a Locker Custom Option action.

  • Adding a Set Attribute action.

Frequently Asked Questions

Can I add another Workflow action to iOS Express Checkout?

  • No. Express Check Out only supports the functionality listed above.

  • You can build your automation using iOS Express Checkout, followed by the OTA Workflow.

    We cannot install profiles using MAM, for example Webex Dynamic profile.

  • If you would like to customize your Check Out Workflow, use your existing DEP workflow model that supports customization of actions.

Can I set a personalized wallpaper with iOS Express Checkout?

Beginning with 7.0, you can add a Locker Custom Option workflow action to your iOS Express Checkout workflow that sets the user name on a personalized Locker lock screen using Live Activities. For more information, see Configure Personalized Lock Screen using Live Activities.

Can I deploy this feature in a limited fashion?

Yes, you can deploy this Workflow model to specific Launchpads, before rolling it out across your organization.

Prerequisites

Take note of the following prerequisites for iOS Express Checkout:

  • Requires that your Mobile Access Management organization be enabled for Check Out.

  • Requires MAM Launchpads running 6.6 or later.

Compatibility

The ability to display checked out devices using a Safari bookmark is not compatible with the iOS Express Checkout workflow model.

Configure the iOS Express Checkout Workflow

To configure iOS Express Checkout:

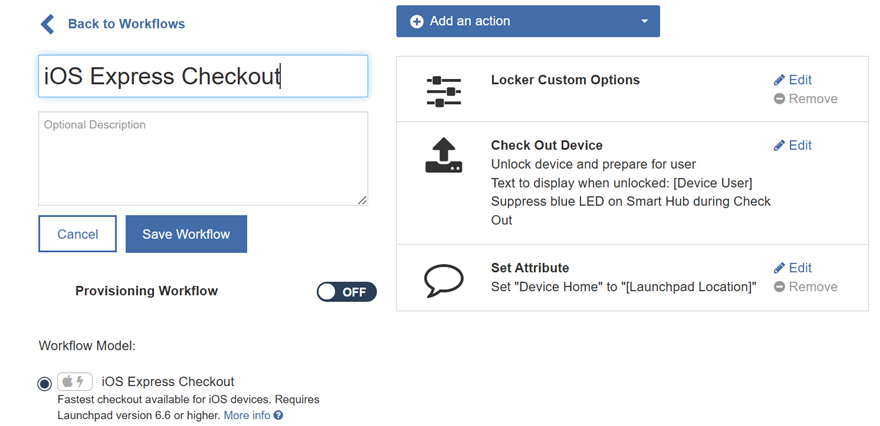

  1. In the MAM admin console, navigate to Workflows.

  2. Create a new checkout workflow and select iOS Express Checkout as the Workflow model.

    The Check Out Device action is automatically added to the Workflow.

    In the Check Out Device action, the only setting that is available for you to edit is the Text to Display when unlocked.

  3. (Optional) Add a Locker Custom Option action to the Workflow for iOS Express Checkout. For more information, see Locker Custom Options.

  4. (Optional in 7.0) Add a Locker Custom Option action to the Workflow to personalize the Locker lock screen using Live Activities. For more information, see Configure Personalized Lock Screen using Live Activities.

  5. (Optional) Add a Set Attribute action to the Workflow for iOS Express Checkout. For more information, see Set Attribute.

  6. Deploy the iOS Express Checkout Workflow to your iOS devices.
